Awesome LinearGradientBrush

Introduction

A linear gradient brush paints an area with a linear gradient. The LinearGradientBrush object represents a linear gradient brush. The default value linear gradient value is diagonal. The StartPoint and EndPoint properties of the LinearGradientBrush represent the start and end points of a gradient. The default values of these properties is (0,0) and (1,1), which is upper-left corner to lower-right corner of an area.

Figure 1 and 2 shows a diagonal gradient.

Fig1. Linear Gradient


Fig2. Linear Gradient with Stops


Example of Linear Gradient Brush

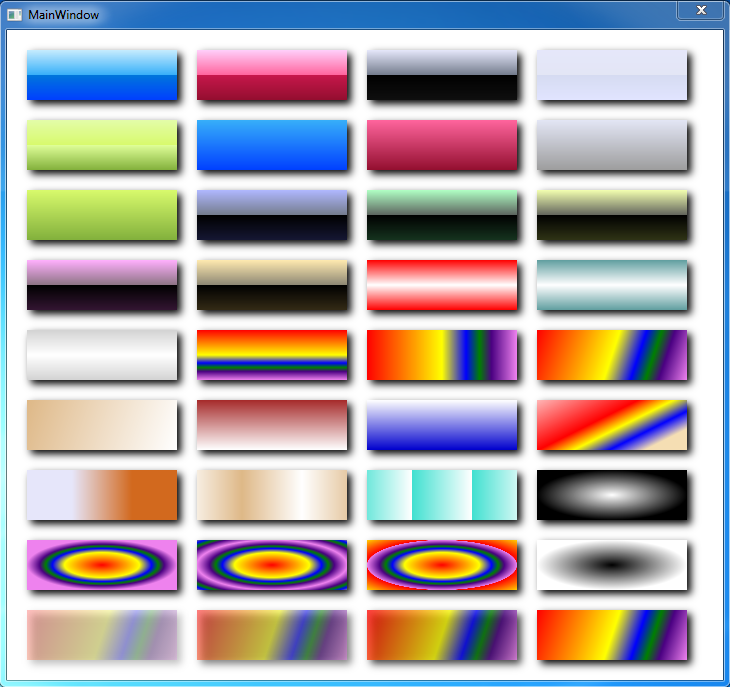

This example shows how to use the LinearGradientBrush class to paint an area with a linear gradient.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
<Window x:Class="LinearGradientBrushTutorial.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        Title="MainWindow" Width="722" SizeToContent="Height" ResizeMode="NoResize">

    <Window.Resources>
        <ResourceDictionary>
            <ResourceDictionary.MergedDictionaries>
                <ResourceDictionary
                  Source="Theme.xaml">
                </ResourceDictionary>
            </ResourceDictionary.MergedDictionaries>
        </ResourceDictionary>
    </Window.Resources>

    <WrapPanel FlowDirection="LeftToRight" Margin="10">

        <Rectangle Fill="{StaticResource CyanThemeBG}"/>
        <Rectangle Fill="{StaticResource MagentaBG}"/>
        <Rectangle Fill="{StaticResource BlackBG}"/>
        <Rectangle Fill="{StaticResource LightBG}"/>

        <Rectangle Fill="{StaticResource TealGreen}"/>
        <Rectangle Fill="{StaticResource CyanLargeBG}"/>
        <Rectangle Fill="{StaticResource MagentaLargeBG}"/>
        <Rectangle Fill="{StaticResource LightLargeBG}"/>

        <Rectangle Fill="{StaticResource GreenLargeBG}"/>
        <Rectangle Fill="{StaticResource PurpleBG}"/>
        <Rectangle Fill="{StaticResource DarkGreen}"/>
        <Rectangle Fill="{StaticResource DarkYellow}"/>

        <Rectangle Fill="{StaticResource DarkGrape}"/>
        <Rectangle Fill="{StaticResource DarkBrown}"/>
        <Rectangle Fill="{StaticResource ReflectedGradient}"/>
        <Rectangle Fill="{StaticResource ReflectedGradientBlue}"/>
        <Rectangle Fill="{StaticResource ReflectedGradientGray}"/>
        <Rectangle Fill="{StaticResource MulticoloredGradientRainbow}"/>
        <Rectangle Fill="{StaticResource DiagonalLinearGradientRainbow1}"/>
        <Rectangle Fill="{StaticResource DiagonalLinearGradientRainbow2}"/>
        <Rectangle Fill="{StaticResource DiagonalLinearGradient}"/>
        <Rectangle Fill="{StaticResource HorizontalLinearGradient1}"/>
        <Rectangle Fill="{StaticResource HorizontalLinearGradient2}"/>
        <Rectangle Fill="{StaticResource GradientStopCollection}"/>
        <Rectangle Fill="{StaticResource LinearGradientBrushSpreadMethodPad}"/>
        <Rectangle Fill="{StaticResource LinearGradientBrushSpreadMethodReflect}"/>
        <Rectangle Fill="{StaticResource LinearGradientBrushSpreadMethodRepeat}"/>
        <Rectangle Fill="{StaticResource RadialGradientBrush}"/>
        <Rectangle Fill="{StaticResource RadialGradientBrushSpreadMethodPad}"/>
        <Rectangle Fill="{StaticResource RadialGradientBrushSpreadMethodReflect}"/>
        <Rectangle Fill="{StaticResource RadialGradientBrushSpreadMethodRepeat}"/>
        <Rectangle Fill="{StaticResource RadialGradientBrushOpp}"/>
        <Rectangle Fill="{StaticResource LinearGradientBrushWithOpacity1}"/>
        <Rectangle Fill="{StaticResource LinearGradientBrushWithOpacity2}"/>
        <Rectangle Fill="{StaticResource LinearGradientBrushWithOpacity3}"/>
        <Rectangle Fill="{StaticResource LinearGradientBrushWithOpacity4}"/>
    </WrapPanel>

</Window>
